Part Number:

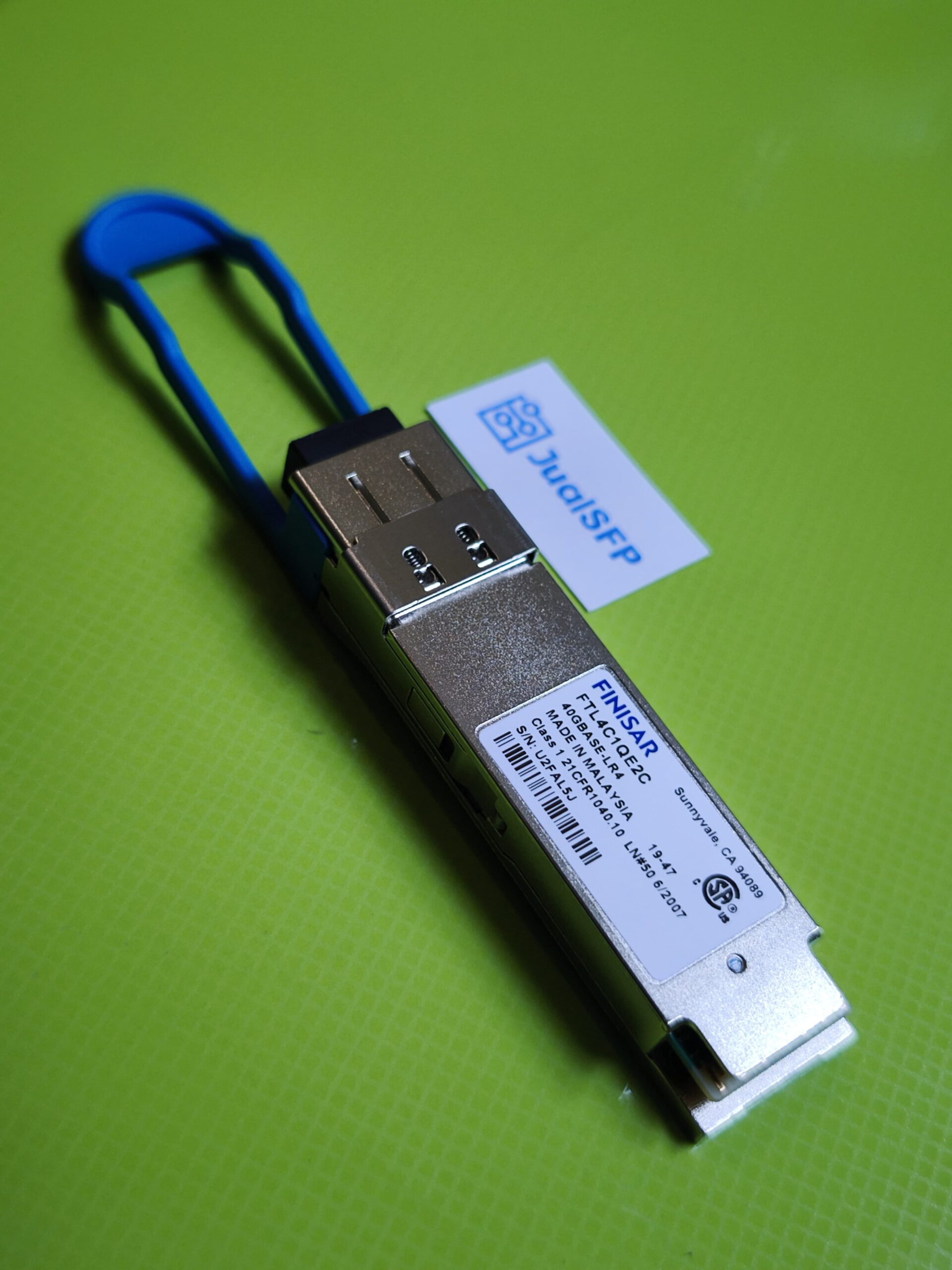

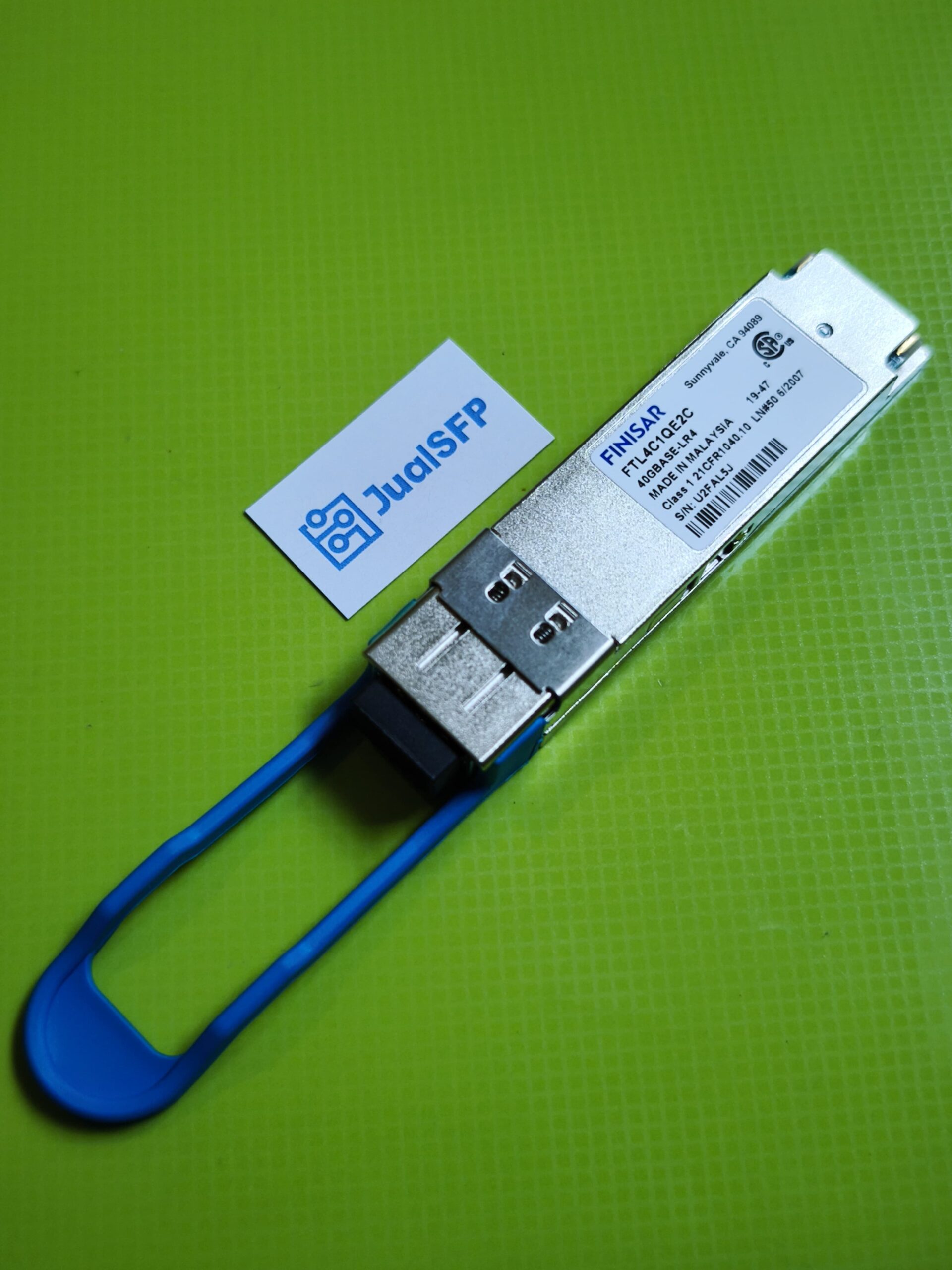

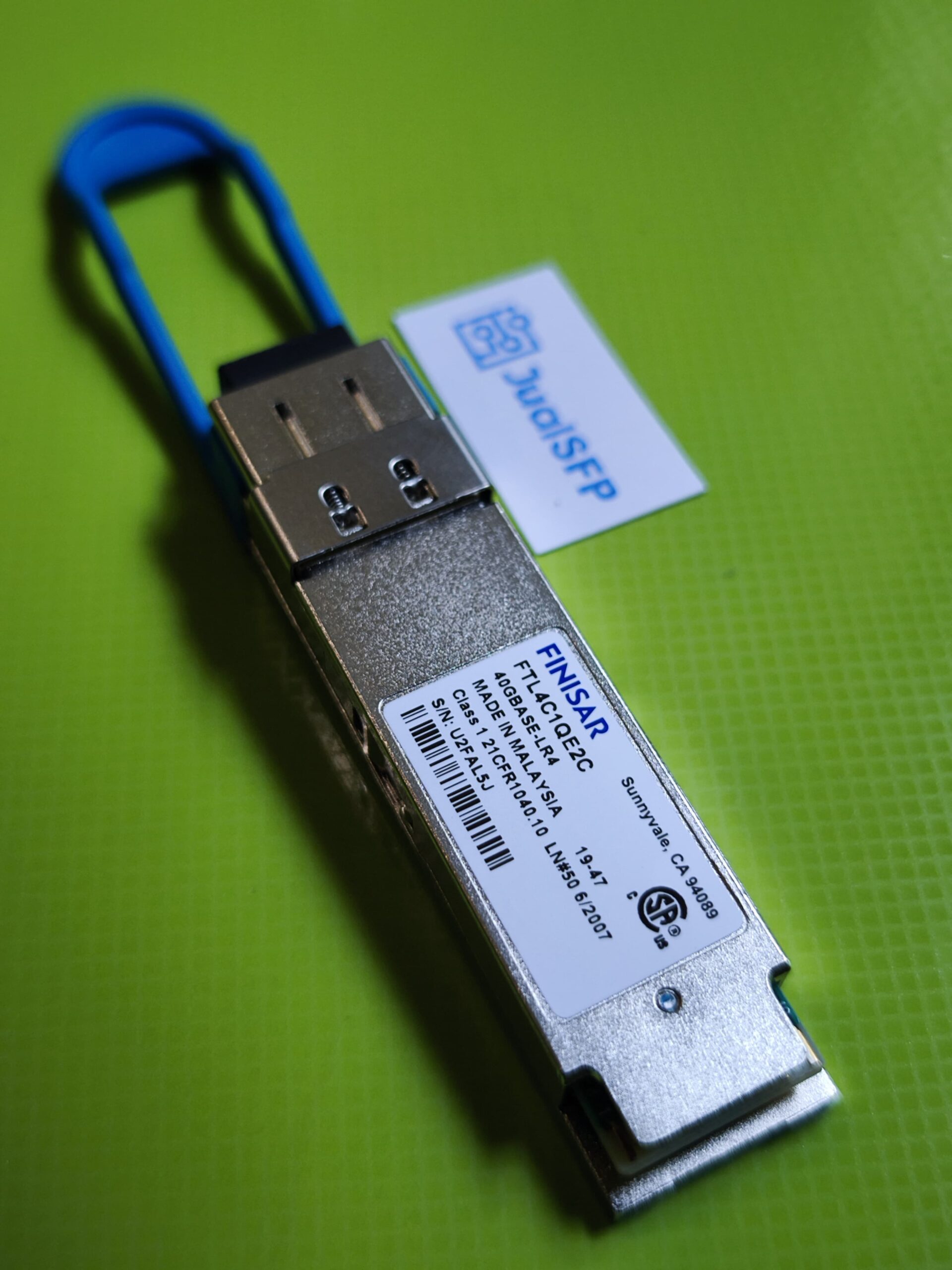

Finisar 40G LR
Harga aslinya adalah: Rp 2,500,000.00.Rp 1,600,000.00Harga saat ini adalah: Rp 1,600,000.00.
Stok 100
Deskripsi
APPLICATIONS
- 40GBASE-LR4 QSFP+ Optical Transceiver Module
Optical Transceivers
• Hot-pluggable QSFP+ form factor
• Supports 41.2 Gb/s aggregate bit rates
• Power dissipation < 3.5W
• RoHS-6 compliant
• Commercial case temperature range 0°C to 70°C
• Single 3.3V power supply
• Maximum link length of 10km on Single Mode Fiber
(SMF)
• Uncooled 4x10Gb/s CWDM transmitter
• XLPPI electrical interface
• Duplex LC receptacles
• Built-in digital diagnostic functions, including Tx/Rx power
monitoring
Specification
| Form Factor | QSFP+ |
|---|---|
| Connector / Polish | LC-Duplex PC |
| Interface | Singlemode |
| Compliance Code | LR4 |
| Operating Temperature | Standard |
| Modulation | NRZ |
| Distance | 10 km |
| Temperature Range | 0°C – 70°C |
| Lane Count | 4x (Tx/Rx) |
| Bandwidth | 41.2 Gbit/s |
|---|---|
| Bandwidth Per Lane | 10.3 Gbit/s |
| Digital Diagnostic Management (DDM) | Yes, internally calibrated |
| Power Consumption | 3.5 W |
| CDR | none |
| SGMII | No |
| Inbuilt FEC | No |
| Powerbudget (dB) | 4.5 dB |
| Transmit min/max per lane | -7 dBm / 2.3 dBm |
| Receiver min/max per lane | -11.5 dBm / 2.3 dBm (overload) @40G |
|---|---|
| Wavelength TX (Typical) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Wavelength RX (Typical) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| Laser | DFB |
| Receiver Type | PIN |
| Modulation | NRZ @40G |
| Transmit and Dispersion Penalty | 2.6 dB |
| Extinction Ratio | 3.5 dB |
| Supported Protocols | 40G Ethernet, 10G Ethernet |
